Engineering TiO₂ Thin-Film Properties Through Oxygen Control

Engineering TiO₂ Thin-Film Properties Through Oxygen Control | KDF Technologies
KDF Technologies · White Paper

Engineering TiO₂ Thin-Film Properties
Through Oxygen Control

How KDF's reactive DC sputtering platform — with its proprietary Gas Ring and dual upstream/downstream gas control — enables precise, repeatable tuning of TiO₂ optical, mechanical, and electrical properties across the full reactive gas range.

By Firas Mahyob · KDF Technologies White Paper Reactive Sputtering TiO₂
Company Background

KDF Technologies: A Legacy of Leadership in Reactive Sputtering

For more than four decades, KDF Technologies has been recognized as one of the most reliable and innovative manufacturers of batch sputtering systems for semiconductor, photonic, and advanced-materials applications. From early-generation planar tools to today's fully engineered production platforms, KDF has consistently delivered equipment that combines mechanical robustness, process stability, and unmatched repeatability.

This long-standing reputation is rooted in a simple principle: every KDF tool is designed to give users complete control over the thin-film growth environment.

KDF 943i reactive sputtering system for TiO2 thin film deposition
KDF Batch Sputtering System — engineered for reactive gas control

Among KDF's many capabilities, reactive sputtering stands out as one of the company's most significant achievements. While other platforms treat reactive gas delivery as an optional add-on, KDF engineered its systems from the ground up to master the complexities of reactive sputtering for oxides, nitrides, and compound materials.

KDF tools have been successfully deployed to deposit TiO₂, Ta₂O₅, TaN, TiN, Cr₂O₃, NbO, NbO₂, Nb₂O₅, and numerous other functional materials — each with precise control over stoichiometry, microstructure, and film properties.

Reactive sputtering is inherently challenging. Introducing oxygen or nitrogen into a plasma changes target surface chemistry, alters plasma impedance, and can shift the process between metallic and poisoned modes. KDF tools were engineered specifically to operate in these conditions with high stability, low drift, and exceptional repeatability.

Core Technology

Gas Ring Innovation & True Reactive Gas Control

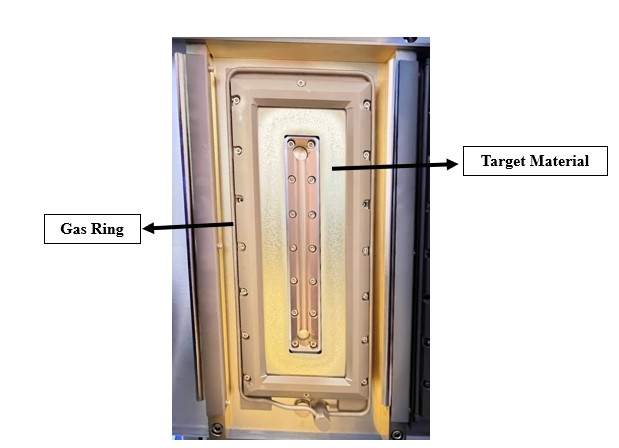

A defining feature of KDF's reactive sputtering architecture is the KDF Gas Ring — a proprietary engineering solution that fundamentally improves how reactive gases are delivered to the target. Traditional sputtering systems rely on manifold-based gas injection, which distributes oxygen or nitrogen unevenly across the chamber, leading to unstable plasma behavior and inconsistent stoichiometry.

Gas Ring Advantages

  • Localized, controlled reactivity at the intended target
  • Reduced cross-target poisoning in multi-cathode systems
  • Stable transitions between metallic and poisoned modes
  • Improved uniformity in deposition rate and film composition
  • Higher repeatability across long production cycles

Dual Gas Control Modes

  • Upstream control — regulates gas flow before the chamber with throttle-valve adjustments
  • Downstream control — regulates chamber pressure directly without throttle modulation
  • Fine-tune O₂/(Ar+O₂) ratio with exceptional precision
  • Consistent film growth across a wide range of materials

Few sputtering platforms offer this dual-mode capability. Together, the Gas Ring and dual gas-control architecture give KDF customers a level of process control that is rare in the industry — forming the foundation for all results demonstrated in this white paper.

Material Overview

TiO₂ as a Model System

Titanium dioxide (TiO₂) is one of the most widely used functional materials in modern technology — and one of the most demanding to deposit consistently. Its unique combination of optical, electrical, and chemical properties makes it essential across a broad range of applications:

  • Semiconductor devices and dielectric layers
  • Photonic and optical coatings
  • Anti-reflective and high-index optical stacks
  • Photocatalysis and environmental applications
  • Solar cells and energy-harvesting systems
  • Gas sensors and electro-optic devices
  • NIR temperature-barrier coatings for medical devices

TiO₂ is an ideal demonstration material because its properties are highly sensitive to the oxygen environment during deposition. Insignificant changes in the O₂/(Ar+O₂) ratio can shift the film between distinct phases:

Sub-stoichiometric TiOₓ → Amorphous TiO₂ → Anatase TiO₂ → Rutile TiO₂
Each phase exhibits distinct refractive index, density, stress, roughness, and electrical conductivity

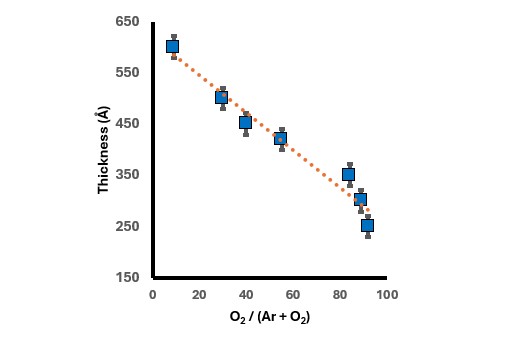

In the KDF application laboratory, TiO₂ films were deposited while varying the O₂/(Ar+O₂) ratio across a wide range — 9%, 30%, 40%, 55%, 84%, 89%, and 92% — while holding all other parameters constant. This controlled design isolates the effect of reactive gas flow on film properties.

100 Å
Minimum Controllable Thickness
2.1–2.8
Refractive Index Range
250→50 Å
Surface Roughness Reduction
7 Ratios
O₂/(Ar+O₂) Test Points
Experimental Results

Optical Properties: Precision Refractive Index Tuning

Optical properties are among the most sensitive indicators of film quality in TiO₂. In the KDF experiments, films were deposited at identical thickness (450 Å) across all oxygen ratios, with the results showing a clear trend: as oxygen fraction increases, refractive index rises — reflecting a transition from oxygen-deficient TiOₓ to dense, near-stoichiometric TiO₂.

Refractive Index at 941 nm (NIR)

The choice of 941 nm is deliberate. This wavelength lies deep in the near-infrared region where TiO₂ exhibits minimal electronic absorption and its refractive index becomes highly sensitive to changes in stoichiometry and film density — providing a clean, dispersion-dominated index value that reflects intrinsic structural quality rather than absorption artifacts.

The 900–1000 nm window is also widely used in medical, sensing, and photonic systems including NIR imaging, pulse oximetry, photothermal diagnostics, and thermal-management coatings. By characterizing TiO₂ at 941 nm, these results directly evaluate its suitability as a temperature-barrier and optical-control layer in medical devices.

O₂/(Ar+O₂) Ratio Refractive Index (n @ 941nm) Film Character Primary Applications
9%~2.28Sub-stoichiometric TiOₓTransparent conductive layers, charge dissipation
30%~2.35Oxygen-deficient TiO₂Sensor contacts, electrodes
40%~2.45TransitionalMixed optical/electrical applications
55%~2.55Near-stoichiometricAntireflection coatings, visible optical stacks
84%~2.68Dense amorphous TiO₂High-index dielectric layers, waveguides
89%~2.75Approaching anatasePhotonic crystals, AR/VR optics
92%~2.83Dense anatase-likeDielectric mirrors, high-confinement waveguides
TiO2 refractive index and dispersion curves vs oxygen ratio KDF reactive sputtering

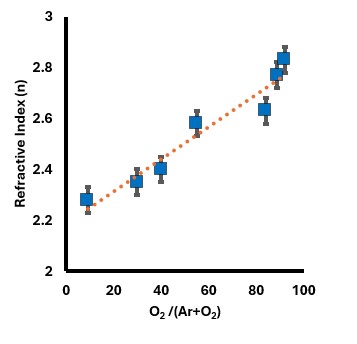

Fig. 2 — Refractive index at 941 nm for TiO₂ films at varying O₂/(Ar+O₂) ratios (450 Å constant thickness)
TiO2 dispersion curves across UV-VIS-NIR spectrum KDF reactive sputtering

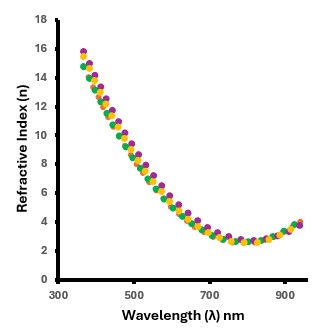

Fig. 3 — Dispersion curves (367–941 nm) for TiO₂ films at varying O₂/(Ar+O₂) ratios
TiO2 optical properties summary KDF reactive sputtering
Fig. 4 — Optical properties summary for TiO₂ films across the full O₂/(Ar+O₂) range

Dispersion Behavior Across UV-VIS-NIR

Dispersion curves collected from 367 nm to 941 nm reveal how TiO₂ interacts with light across the full spectrum. Films deposited at different oxygen ratios show clear separation even at identical thickness — a direct indicator of KDF's microstructural control. This tunability enables:

  • High-index contrast — for dielectric mirrors, waveguides, photonic integrated circuits, and AR/VR optical combiners
  • Low optical loss — essential for NIR medical sensors, biosensing platforms, and implantable photonic components
  • Precise phase control — for metasurfaces, interferometric modulators, and temperature-barrier coatings in NIR medical devices
  • Broadband or narrowband design — from solar energy coatings to spectrally selective laser line mirrors
  • Engineered dispersion — for ultrafast optics, nonlinear photonics, and chromatic aberration-corrected metasurfaces
Experimental Results

Surface Roughness: Morphology Control Through Oxygen Engineering

Surface roughness is a critical parameter for TiO₂ films used in optics, semiconductors, and MEMS devices. In the KDF study, roughness was measured for films deposited at constant thickness (450 Å) across all oxygen ratios, revealing a clear trend: increasing oxygen leads to smoother films.

Low O₂ (~9%) → High Roughness (~250 Å)

Film grows in a porous, defect-rich structure due to oxygen deficiency and rapid metallic-mode deposition. Beneficial for light-scattering surfaces, diffuse reflectors, and adhesion-enhanced underlayers in multilayer stacks.

High O₂ (~92%) → Low Roughness (~50 Å)

Film transitions to stoichiometric TiO₂ with denser, more uniform network and fewer voids. Required for precision optical coatings, semiconductor interfaces, high-density capacitors, and barrier layers.

TiO2 surface roughness vs oxygen ratio KDF reactive sputtering results

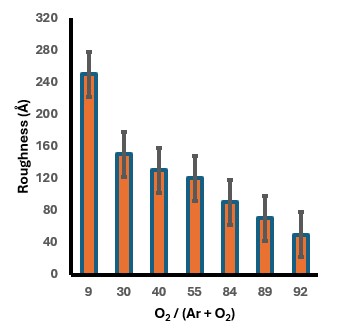

Fig. 5 — Surface roughness as a function of O₂/(Ar+O₂) ratio for TiO₂ films at 450 Å

KDF's Gas Ring and dual upstream/downstream control enable a stable reactive environment across the entire oxygen range — allowing users to tune roughness from 250 Å to 50 Å simply by adjusting the oxygen fraction, without changing power, pressure, pallet speed, or thickness.

Experimental Results

Mechanical & Electrical Properties

Film Stress: Engineering from Compressive to Tensile

Film stress plays a significant role in wafer bow, adhesion, cracking, and long-term device reliability. KDF TiO₂ results reveal a smooth transition from compressive stress at low oxygen to tensile stress at high oxygen:

  • Low O₂ (metallic mode) — higher deposition energy and rapid growth lead to compressive stress. Useful for crack-resistant coatings and films that must withstand thermal cycling.
  • Moderate O₂ (transition region) — densification and limited adatom mobility produce maximum compressive stress.
  • High O₂ (poisoned mode) — lower deposition energy and slower growth allow stress relaxation, shifting the film into mild tensile stress. Preferred for MEMS structures and flexible substrates.

Sheet Resistance: Stoichiometry-Driven Electrical Control

TiO₂'s electrical behavior is governed primarily by oxygen vacancies, which function as donor defects. As oxygen fraction increases, these vacancies are "healed," producing a more insulating film with higher sheet resistance:

Low Sheet Resistance (Low O₂)

Sub-stoichiometric TiOₓ with high oxygen vacancy concentration increases free-electron density. Suitable for transparent conductive layers, electrodes, sensor contacts, and charge dissipation coatings.

High Sheet Resistance (High O₂)

Near-stoichiometric TiO₂ produces more insulating film. Ideal for dielectric layers, insulating barriers, capacitor dielectrics, and optical stacks requiring electrical isolation.

TiO2 film stress vs oxygen ratio KDF reactive sputtering

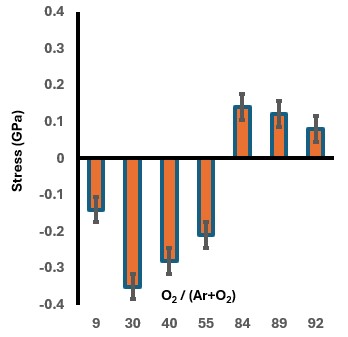

Fig. 6 — Film stress as a function of O₂/(Ar+O₂) ratio for TiO₂ films
TiO2 sheet resistance vs oxygen ratio KDF reactive sputtering

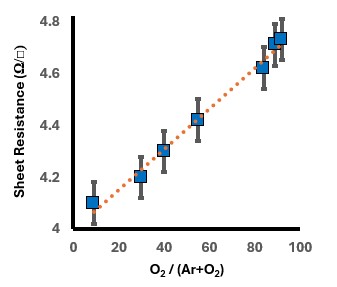

Fig. 7 — Sheet resistance as a function of O₂/(Ar+O₂) ratio for TiO₂ films
TiO2 electrical properties summary KDF reactive sputtering
Fig. 8 — Electrical properties summary across the full O₂/(Ar+O₂) range
TiO2 thin film properties comparison table KDF reactive sputtering
Fig. 9 — Summary of TiO₂ thin film properties vs O₂/(Ar+O₂) ratio
Summary

Discussion & Conclusions

The results presented in this white paper demonstrate the exceptional capability of KDF reactive sputtering tools to control the physical, optical, mechanical, and electrical properties of TiO₂ thin films. By adjusting only the O₂/(Ar+O₂) ratio — while keeping thickness, pressure, power, and pallet speed constant — KDF systems produce films with dramatically different characteristics.

More O₂ → High n · Low Roughness · Low Stress · High Sheet Resistance
Less O₂ → Low n · High Roughness · High Stress · Low Sheet Resistance
All properties tunable at constant thickness via O₂/(Ar+O₂) ratio adjustment alone

This level of control is made possible by four core engineering innovations:

  • The KDF Gas Ring — delivers reactive gas uniformly, minimizes cross-target poisoning
  • Dual upstream and downstream gas-control modes — stable operation across the full reactive regime
  • Highly repeatable batch sputtering architecture — optimized over decades of development
  • Stable plasma behavior — even at high oxygen fractions where competing systems fail

KDF Technologies provides one of the most capable and stable reactive sputtering platforms in the industry. These results confirm that KDF tools give customers the ability to engineer thin-film properties with precision, repeatability, and confidence — whether for production, research, or advanced device development.

References

  1. M. Mazur, "Analysis of the properties of functional titanium dioxide thin films deposited by pulsed DC magnetron sputtering with various O₂:Ar ratios," Optical Materials, vol. 69, pp. 96-104, 2017.
  2. K. A. Jagadish and D. Kekuda, "Exploration of physical properties of DC magnetron sputtered titania thin films," Journal of Materials Science: Materials in Electronics, vol. 35, pp. 2000-2015, 2024.
  3. M. R. Hantehzadeh et al., "Physical properties of titanium oxide thin films prepared by DC magnetron sputtering," Journal of Fusion Energy, vol. 32, pp. 622-626, 2013.
  4. F. A. Tantray et al., "Effect of oxygen partial pressure on ion beam sputtered TiO₂ thin films," Journal of Physics: Conference Series, vol. 755, 2016.
  5. R. G. Korpi et al., "Influence of oxygen partial pressure on RF-sputtered anatase TiO₂ thin films," Results in Physics, vol. 7, pp. 3349-3352, 2017.
  6. T. Ogawa et al., "Enhanced photocatalytic activity of TiO₂ thin film by reactive RF sputtering under oxygen-rich conditions," Photochem, vol. 2, pp. 138-149, 2022.
  7. H. C. Vasconcelos et al., "Surface Roughness and Fractal Analysis of TiO₂ Thin Films by DC Sputtering," Eng. Proc., vol. 105, no. 1, 2025.
  8. A. Arbabi et al., "Dielectric metasurfaces for complete control of phase and polarization," Nature Nanotechnology, vol. 10, pp. 937-943, 2015.
  9. H. A. Macleod, Thin Film Optical Filters, 4th ed. CRC Press, 2010.
  10. M. Zare et al., "Electrical and Optical Behavior of TiO₂ Thin Films with Varying Oxygen Content," J. Phys. Chem. C, vol. 120, pp. 9017-9027, 2016.
