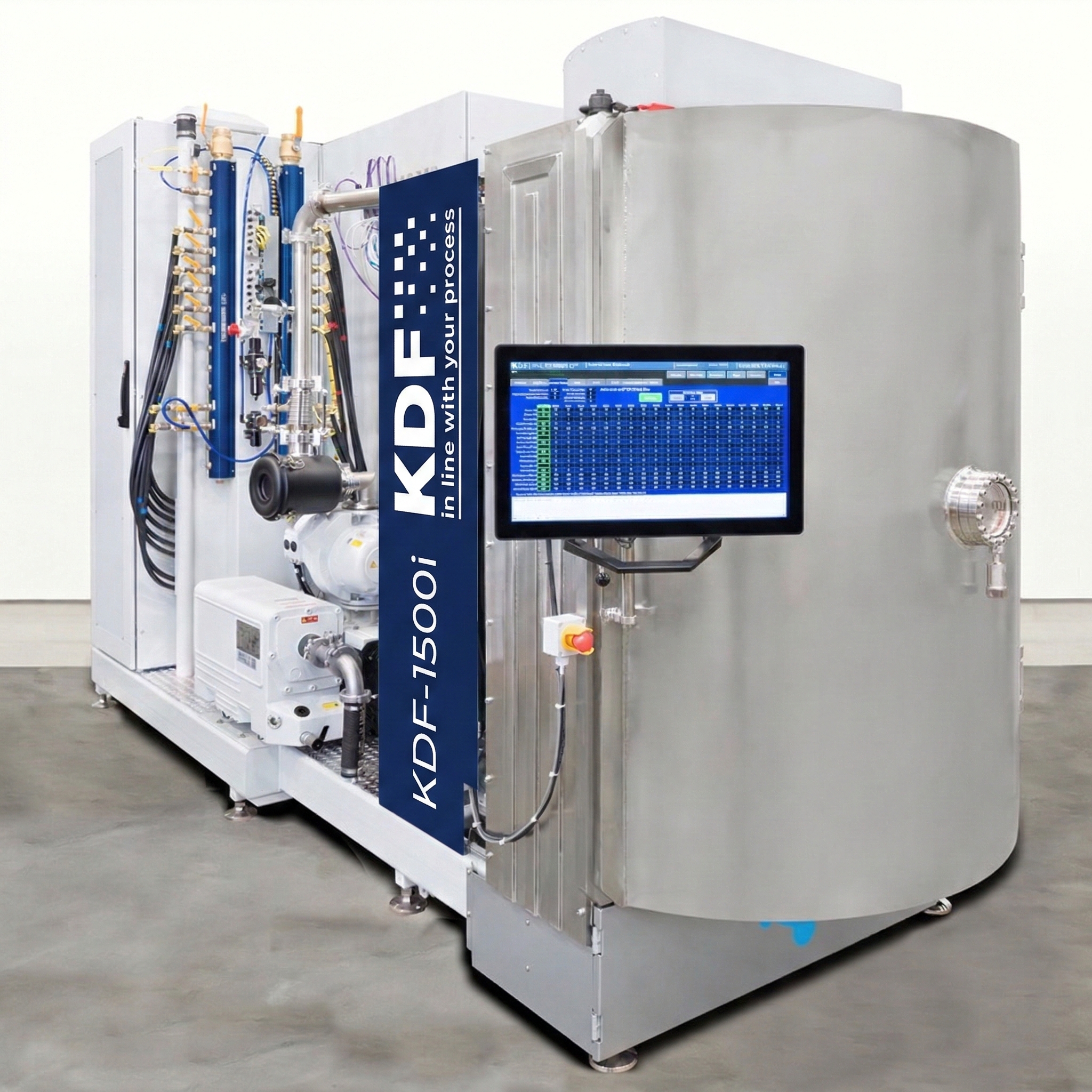

KDF-1500i™ System
High-Capacity PVD & DLC with Optional Magnetron Sputtering
The mid-size KDFi Series powerhouse — combining cathodic arc and optional magnetron sputtering in a compact, price-competitive platform. 10 racks, parts up to 100 cm, and up to 3 PVD sources for manufacturers and coating service providers who need high throughput without a large footprint.
Request a Consultation View Specifications
Overview
High Throughput. Compact Footprint. Exceptional Value.
The KDF-1500i™ is the mid-size system in KDF Technologies' KDFi Series — purpose-built for manufacturers and coating service providers who need high-volume production capability without the footprint or capital investment of the largest industrial systems. It delivers the performance of a large coater in a compact, price-competitive package.
What sets the 1500i apart is its unique combination of cathodic arc and optional magnetron sputtering technologies in the same machine — up to 3 PVD sources — giving operators the flexibility to deposit a broader range of coating materials and compositions than single-technology systems:
- 10 high-capacity racks for maximum parts-per-batch and low cost per coated part
- Parts up to 100 cm (39 in) long — suitable for a wide range of industrial part sizes
- Cathodic arc (LTAVD®) plus optional magnetron sputtering — up to 3 PVD sources
- Decorative PVD color coatings including bright and dark metallic finishes
- PECVD diamond-like carbon (DLC) coatings for wear and functional applications
- Compact 4.4m × 2.0m footprint — designed for easy factory integration
The Sweet Spot
Why the KDF-1500i Is the Right Fit for Growing Operations
The KDF-1500i sits at the ideal intersection of capacity, flexibility, and cost — more throughput and coating capability than the KDF-1000i, at a significantly lower footprint and investment than the KDF-3000i.
Mid-Size, Maximum Value
10 racks and 7.98 m² of coating area per batch deliver high-volume output at a price point and footprint designed for growing operations — not just large enterprises.
Two Technologies, One System
Cathodic arc and optional magnetron sputtering in the same machine give you access to a broader coating material library than cathodic arc alone — without needing two separate systems.
Built for Service Providers
The 1500i's capacity, flexibility, and competitive economics make it an ideal platform for coating service providers offering PVD and DLC services to multiple customers across multiple industries.
Compact for Its Class
A 4.4m × 2.0m footprint delivers 10-rack high-throughput production in significantly less floor space than comparable mid-size coating systems.
Dual Deposition Technology
Cathodic Arc + Magnetron Sputtering — In One System
The KDF-1500i combines two complementary PVD deposition technologies in a single chamber — giving operators the ability to optimize coating processes for a wider range of applications, materials, and performance targets than any single-technology system.
Cathodic Arc (LTAVD®)
KDF Technologies' proprietary Low-Temperature Arc Vapor Deposition (LTAVD®) is the foundation of the KDF-1500i — delivering high deposition rates, excellent coating adhesion, and consistent results across decorative and functional PVD applications.
- High deposition rates for efficient production cycles
- Excellent coating adhesion on metal and prepared plastic substrates
- Ideal for decorative color PVD — gold, black, bronze, chrome, and more
- Supports DLC/PECVD coating process in the same chamber
- Lower processing temperatures than many competing technologies
Magnetron Sputtering
Optional magnetron sputtering sources expand the KDF-1500i's coating material library and enable deposition of coating compositions and structures that are difficult or impossible to achieve with cathodic arc alone.
- Access to a broader range of coating materials and alloy compositions
- Smoother coating surfaces than cathodic arc for select applications
- Enables advanced multilayer and gradient coating architectures
- Ideal for specialized functional and optical coating applications
- Up to 3 total PVD sources when combined with cathodic arc
PVD Coatings
Decorative Color PVD & High-Performance Functional Coatings
The KDF-1500i deposits the complete range of KDF Technologies' decorative PVD color coatings alongside high-performance functional and wear coatings. Optional magnetron sputtering expands the available coating palette beyond what cathodic arc alone can achieve.
Gold / Champagne PVD
Rich zirconium nitride (ZrN) and titanium nitride (TiN) gold tones — durable, vibrant, and corrosion resistant.
Black PVD
Deep matte and gloss black via zirconium carbonitride and chromium nitride — consistently one of the most in-demand decorative PVD finishes.
Chrome / Silver PVD
A hard, environmentally responsible chrome alternative — no hexavalent chromium, no hazardous waste, full visual impact.
Bronze & Warm Tones
Oil-rubbed bronze, antique copper, and warm metallic PVD finishes for plumbing, hardware, and architectural applications.
Full Color PVD Spectrum
Blues, greens, purples, rose gold, gunmetal, and custom color tones for consumer goods, luxury products, and specialty applications.
DLC (Diamond-Like Carbon)
PECVD diamond-like carbon coatings — ultra-hard, low-friction surfaces for medical devices, automotive parts, cutting tools, and firearms.
Wear Coatings (TiN · CrN · ZrN)
Industrial nitride and carbonitride wear coatings that extend tool and component life under abrasion, heat, and mechanical stress.
Zirconium PVD
Zirconium-based coatings offering exceptional hardness, a wide decorative color range, and superior corrosion resistance.
Key Capabilities
What the KDF-1500i Delivers
Compact High-Throughput
10 racks and 7.98 m² of coating area in a 4.4m × 2.0m footprint — exceptional production capacity per square meter of floor space.
Dual Technology Flexibility
Cathodic arc (LTAVD®) plus optional magnetron sputtering — up to 3 PVD sources in a single system for a wider coating material library.
Price Competitive
High-capacity performance at a price point designed to be accessible for mid-volume manufacturers and coating service providers.
Large Part Capacity
Parts up to 100 cm (39 in) long on racks measuring 100 cm × 25.4 cm Ø across 10 racks per batch.
DLC Capability Built In
Full PECVD diamond-like carbon (DLC) coating capability included — no separate system required for medical, automotive, firearms, and precision applications.
Easy to Operate
KDF Technologies' intuitive software interface and full training program ensure your team is productive from day one.
Industries & Applications
Who Uses the KDF-1500i
The KDF-1500i serves mid-to-high volume manufacturers and coating service providers across a broad range of industries. Its combination of throughput, part size capacity, and dual deposition technology makes it equally at home in decorative hardware finishing and high-performance industrial coating operations.
Plumbing & Home Hardware
High-volume decorative PVD color coatings for faucets, door hardware, cabinet pulls, and architectural fixtures.
Medical Devices
DLC and hard nitride coatings for surgical instruments, orthopedic implants, and precision medical components.
Cutting Tools & Tooling
TiN, CrN, and ZrN wear coatings at production scale for drills, end mills, inserts, and forming tools.
Automotive Parts
Wear-resistant and decorative coatings for engine components, trim, fasteners, and precision assemblies.
Molds & Dies
Hard DLC and CrN coatings that reduce adhesion and extend mold life in injection molding and stamping operations.
Firearms
Black DLC, TiN, and decorative PVD coatings for pistols, rifles, and firearm component finishing operations.
Precision Components
Functional thin-film coatings for bearings, shafts, gears, and precision-engineered parts requiring tight tolerances.
Coating Service Providers
The 1500i's capacity, flexibility, and competitive economics make it a preferred platform for PVD and DLC coating service operations.
Technical Specifications
KDF-1500i System Specifications
| Parameter | Value |
|---|---|
| System Capacity | |
| System Footprint | 4.4m × 2.0m |
| Coating Area per Batch | 7.98 m² |
| Number of Racks | 10 |
| Rack Size | 100 cm × 25.4 cm Ø |
| Coating Technologies | |
| Deposition Technologies |
|
| Coating Processes | |
| Processes |
|
| Available Coatings | |
| Functional / Wear Coatings | TiN, CrN, ZrN, TiCN, and DLC (diamond-like carbon) |
| Decorative Color PVD | Gold, black, chrome, bronze, rose gold, blue, champagne, gunmetal, and custom colors |
| Base Materials | Pure, alloyed, or reacted zirconium, titanium, chromium, and carbon |
| Substrate Compatibility | |
| Materials | Steel, stainless steel, brass, zinc, aluminum, and prepared plastic substrates |
* Contact KDF Technologies for magnetron sputtering configuration options and site preparation requirements.
Frequently Asked Questions
KDF-1500i — Common Questions
What makes the KDF-1500i different from the KDF-1000i and KDF-3000i?
The KDF-1500i is the mid-size system in the KDF Technologies KDFi Series, sitting between the compact KDF-1000i and the large-scale KDF-3000i. It offers significantly more coating capacity than the 1000i — 10 racks versus 6, and 7.98 m² versus 4.79 m² per batch — while remaining more compact and price-competitive than the 3000i. Its key differentiator is the addition of optional magnetron sputtering alongside cathodic arc, giving it a broader coating capability than either the 1000i or 3000i at its price point.
Is magnetron sputtering required or is it optional?
Magnetron sputtering is optional on the KDF-1500i. The system ships standard with cathodic arc (LTAVD®) technology and can be configured with up to 2 additional magnetron sputtering sources for a total of up to 3 PVD sources. Contact KDF Technologies to discuss which configuration is best suited for your specific coating applications.
What decorative PVD colors can the KDF-1500i produce?
The KDF-1500i produces the full range of KDF Technologies' decorative PVD colors — including gold, satin gold, champagne, rose gold, black, matte black, gunmetal, chrome/silver, bronze, oil-rubbed bronze, blue, and custom color specifications. The addition of optional magnetron sputtering expands the available color palette and enables additional coating compositions beyond what cathodic arc alone can achieve.
What is the footprint and rack capacity of the KDF-1500i?
The KDF-1500i has a footprint of 4.4m × 2.0m (14.4 ft. × 6.7 ft.) — compact for a 10-rack high-throughput system. It accommodates 10 racks of 100 cm × 25.4 cm Ø each, providing a total coating area of 7.98 m² per batch and the ability to coat parts up to 100 cm (39 in) long.
Is the KDF-1500i suitable for coating service providers?
Yes — the KDF-1500i is one of KDF Technologies' most popular systems for coating service providers. Its 10-rack capacity, dual technology flexibility, and competitive price point deliver the economics and versatility needed to profitably serve multiple customers across multiple industries — from decorative hardware finishing to industrial wear coating applications.
What functional and wear coatings can the KDF-1500i apply?
The KDF-1500i deposits titanium nitride (TiN), chromium nitride (CrN), zirconium nitride (ZrN), titanium carbonitride (TiCN), and diamond-like carbon (DLC) functional coatings via its PECVD capability — alongside the full range of decorative PVD color finishes.
What industries does the KDF-1500i serve?
The KDF-1500i serves plumbing and home hardware manufacturers, medical device companies, cutting tool and tooling producers, automotive suppliers, mold and die makers, firearms manufacturers, precision component producers, blade and cutlery brands, and coating service providers.
